用处与简洁/Brief Introduction：

机器是加入液体液夹层瓶子的新好产品，充分解决方法了往往液体液夹层瓶子的不好成果。该类灌封机用到的氟瓶子，才能不需洗瓶机、干燥机，更不需消毒液，能够 一直灌封。该设备全系统自动理瓶、进瓶、罐装，罐装量相对安全稳定，无漏滴，无瓶不罐装。上盖、密封率可达到100%。此机技术水平较为先进，面积小、运营相对安全稳定、燥音低，进行修理、的清洗简单方便等特色，根本达到GMP细则。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本主要参数有慢速和稳定每种生产产量供您选用。Note: this model has two kinds of low speed and high-speed production for your choice.

的特点 Characteristic

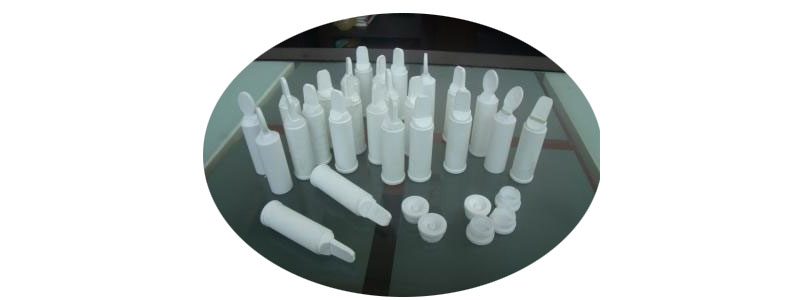

◆远程服务器可用在各项易折瓶口服方式液量值溯源罐装和粘口。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆大多数电子开关元件开关元件均所采用高知名度名牌。All electrical components adopt famous brand◆机器操作流程准确方面，无瓶不灌装线，的计量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑料管瓶灌封机的主要是结构特征与方法Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服用液易折朔料瓶灌封机注意理瓶器、理盖器、主传动链设计、发送到带空隙送瓶裝置、空罐检漏器、分装机购、消除器、具有热熔封机购、手动机械设备手掌夹瓶机购、系列伺服高压电机空隙上瓶机购与出瓶机购等构成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆广州POS机施用的服食液易折塑料管瓶、盖都是定洁净间区分娩的，应该药粉材可证证，但是瓶身与底盖经引入和"去项目外包"后可立即到灌封间。经由理盖器、理瓶器的会自动定项翻整，剔出倒置底盖及瓶身底口朝下的瓶，使定项后的包材喂料有制度地到传输正轨中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆专向后服用液易折金属瓶在输送机道轨总排名Directional oral liquid after folding plastic bottles in conveying rail out easily

技能因素technical parameters：

型号model	NLGFY-40	NLGFY-80
装量位置The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封好率Hot sealing intensity	》99%
装量误差度The load error	《1.5%
划痕率damage rate	《1.0%
热效率power	2KW	3KW
电源适配器Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
承重 Weight	700Kg	800Kg
